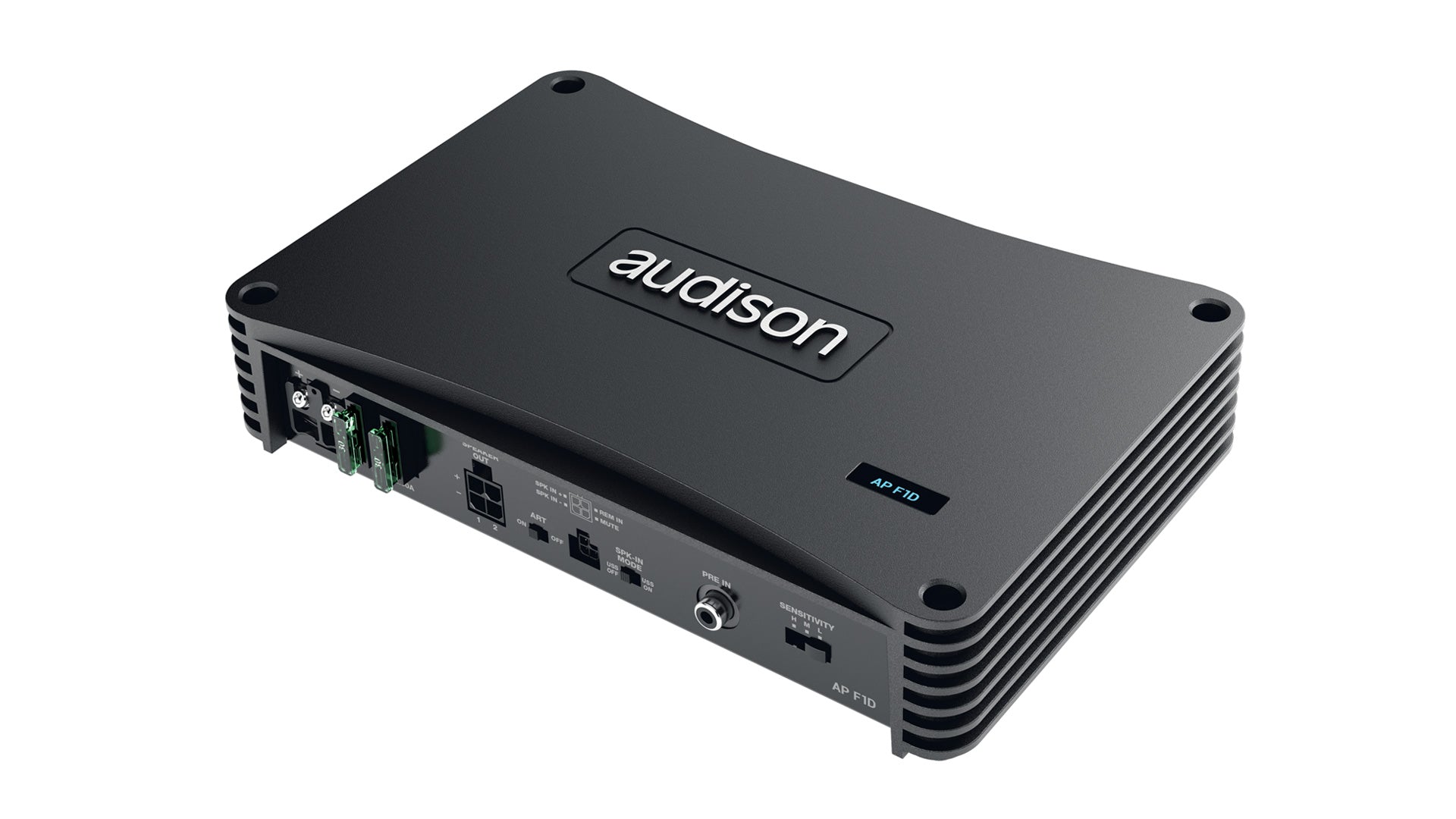

Audison APF1D
Sale price$1,149.99Regular price
$1,200.00
• Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
• Operating power supply voltage 6.5 ÷ 17 VDC
• Idling current 1.3 A
• Idling current when off 0.05 mA
• Consumption @ 14.4 VDC, 2Ω, Max Musical Power 50 A
• Remote IN 6.5 ÷ 15 VDC (1 mA)
• ART - Automatic Remote Turn on/off from OUTPUT
• BTL speakers (Selectable) 2 ÷ 7 VDC
AMPLIFIER STAGE
• Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
• Damping factor @ 100 Hz, 4Ω, 2 VRMS 140
• Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
• S/N ratio (A weighted @ 1 V Input) 110 dBA
• Input sensitivity Pre-In Selectable:
• 0.6 - 2.0 - 6.0 VRMS
• Input sensitivity Speaker-In Selectable:
• 2.0 - 6.5 - 20 VRMS
• Minimum load impedance 1Ω
OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
• 1Ch @ 4Ω 500 W x 1
• 1Ch @ 2Ω 800 W x 1
• 1Ch @ 1Ω 1000 W x 1
INPUTS
• Pre-In Inputs RCA
• Speaker-In Inputs wired
• Mute (Energy Saving control) wired (active to ground)
OTHER
• Ambient operating
• temperature range 0 °C to 55 °C (32 °F to 131 °F)
SIZE
• Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
• Weight (kg/lbs) 1,92 / 4.23
• Operating power supply voltage 6.5 ÷ 17 VDC
• Idling current 1.3 A
• Idling current when off 0.05 mA
• Consumption @ 14.4 VDC, 2Ω, Max Musical Power 50 A
• Remote IN 6.5 ÷ 15 VDC (1 mA)
• ART - Automatic Remote Turn on/off from OUTPUT
• BTL speakers (Selectable) 2 ÷ 7 VDC
AMPLIFIER STAGE
• Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
• Damping factor @ 100 Hz, 4Ω, 2 VRMS 140
• Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
• S/N ratio (A weighted @ 1 V Input) 110 dBA
• Input sensitivity Pre-In Selectable:
• 0.6 - 2.0 - 6.0 VRMS
• Input sensitivity Speaker-In Selectable:
• 2.0 - 6.5 - 20 VRMS
• Minimum load impedance 1Ω
OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
• 1Ch @ 4Ω 500 W x 1
• 1Ch @ 2Ω 800 W x 1
• 1Ch @ 1Ω 1000 W x 1
INPUTS
• Pre-In Inputs RCA
• Speaker-In Inputs wired
• Mute (Energy Saving control) wired (active to ground)
OTHER
• Ambient operating
• temperature range 0 °C to 55 °C (32 °F to 131 °F)
SIZE
• Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
• Weight (kg/lbs) 1,92 / 4.23
Hurry, only 1 item left in stock!
